Product Detail

Model No.: HS-2006

Production Capacity: 1500 Pieces per week

Delivery Date: According to customers

Shape: Linear

Protect Feature: Enclosed

Function: Driving

Brand Name: Customized

Color: Black/Silvery White

Means of Transport: Ocean,Air

Packing: Canton packing

Structure: Others

Phase: Single-phase

Speed: Constant Speed

Usage: Electric Tool

Material: Aluminum

Certificate: CE, RoHS

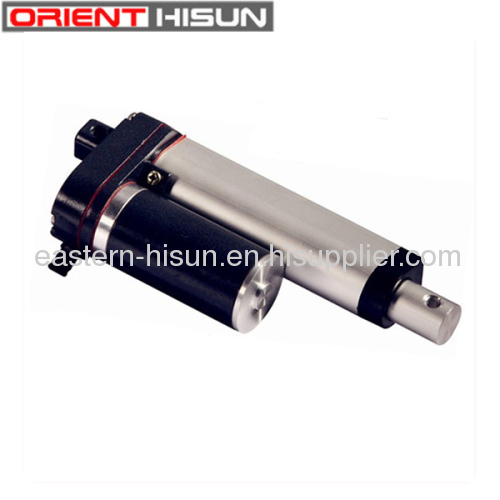

Full metal linear actuator motor
1.DC 12/24V
2.2000N(push)/2000N(pull)
3.IP54
4.Waterproof

12V/24V DC Full Metal Linear Actuator Motor HS-2006

1, This full metal made industrial linear actuator is more suitable for outdoor occasions, with good rain proof performance, as well as the higher overall protection level, the 24 v input dc voltage makes higher safety.

2, Mounting distance and stroke can be customized.

Technical data:

Model	HS-2006
Input voltage	12V/24V/36V DC
Load capacity	Max 2000N (push) / 2000N (pull)
Operating mode	10%; intermittent duty 2/18 min
Limit switches	Built-in, factory preset
Operation temperature	+5°C~ +40°C
Tail connector	No rotation
Protection class	IP54
Min. Install dimension	120mm
Max. stroke	400mm
Colour	Black/Grey
